Lightweight Fill for Bridge Abutments: Reducing Lateral Earth Pressure and Differential Settlement
No differential settlement. No buoyancy risk. No compromise.
Building approach embankments against a bridge abutment creates two critical structural constraints: lateral earth pressure on the foundations and differential settlement at the embankment-to-structure interface.
The Nidaplast RA honeycomb polypropylene lightweight fill (SAUL — ultra-lightweight cellular structure) addresses both issues by replacing conventional fill with 95%-void PP honeycomb blocks, with a dry unit weight of 35 to 45 kg/m³ — compared to 1,700 to 1,900 kg/m³ for standard granular fill.
Why Conventional Backfill Creates Problems at Bridge Abutments
Granular or cohesive fill placed against a bridge abutment generates lateral earth pressure proportional to the material’s unit weight, its height, and the coefficient of earth pressure at rest (Ka).
The greater the fill height, the higher the horizontal forces applied to the abutment foundations.
On top of this lateral pressure, differential settlement develops at the top of the approach embankment — a recurring source of structural damage including road surface deformation and cracking near the deck end.
This application has been validated in French national road construction guidelines and is supported by documented installations since 1986 — including T0 and T3 traffic-class roads and motorway projects.
The French LCPC Technical Guide (Use of Ultra-Lightweight Cellular Structures in Road Embankments, 1992) explicitly lists among the applications of SAUL in road construction: limiting “horizontal ground deformations and forces on bridge abutment foundations during approach embankment construction (negative friction and horizontal forces)”.

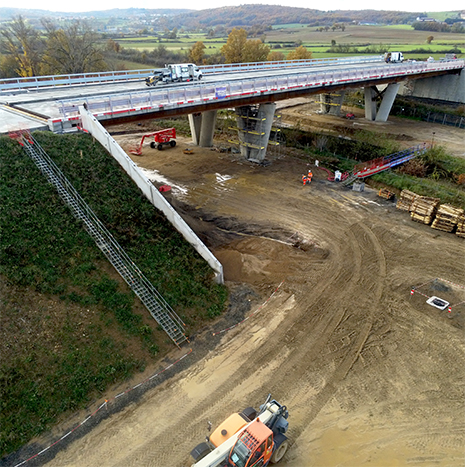

How Nidaplast RA Lightweight Fill Works at Bridge Abutments
The approach consists of replacing all or part of the embankment body with polypropylene honeycomb blocks (non-virgin PP, 60% recycled content).

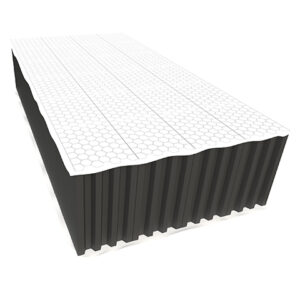

The cellular structure delivers a 95% void ratio, giving the material a dry unit weight of 35 kg/m³ (RA400) to 45 kg/m³ (RA600) — approximately 40 to 50 times lighter than conventional fill.
The low density of the material significantly reduces lateral earth pressure on bridge abutments and limits settlement of the ground or deformation of the approach road.
The open-cell structure creates no buoyancy force in the presence of water, with blocks remaining neutral to changes in the water table level.
Source — Nidaplast 2026 product catalogue: “Lightweight fill reduces lateral forces that may cause loading on foundations, retaining walls, etc. In the case of a bridge abutment, the use of an ultra-lightweight cellular fill (SAUL) also limits ground settlement and deformation of the carriageway.”
Nidaplast RA Technical Specifications
Nidaplast RA blocks are available in three compressive resistance grades (RA400, RA500, RA600). The values below are taken from the 2026 product catalogue.
Property
Dry unit weight
Short-term compressive strength (520 mm block)
Long-term allowable bearing pressure (×2 safety factor, 50 yrs)
Max. depth of overlying fill (3 layers)
Void ratio
Note: the long-term allowable bearing pressure includes a safety factor of 2 applied to the maximum allowable vertical stress extrapolated to 50 years (per CSTB Technical Approval). This is the governing value for permanent service condition design.
Standard block dimensions: 2,400 × 1,200 × 520 mm. RA500 panels (40, 60, 100 or 120 mm thick) allow geometric adjustments at the perimeter of the fill mass or at transition zones with the structure.
Key Benefits of Nidaplast RA Lightweight Backfill for Bridge Structures
Reduced Lateral Earth Pressure on Abutment Foundations
The low unit weight of the honeycomb blocks significantly reduces horizontal forces transferred to footings and foundation piles. On geotechnically constrained projects, this allows lighter foundation design or rehabilitation of existing structures without structural strengthening.
Controlled Differential Settlement
Replacing conventional fill with Nidaplast RA blocks reduces loads applied to the foundation soil and improves structural stability by limiting differential deformation between the approach embankment and the pile-founded abutment. This is particularly critical on soft ground or at hard/soft ground transitions.
Hydraulically Transparent — No Buoyancy Risk
The open cells allow free water movement through the blocks. In zones subject to water table fluctuations, the lightweight fill generates no buoyancy force. This makes it the preferred EPS geofoam alternative for wet or flood-prone sites, validated in practice on projects including Toddbrook Dam (Derbyshire, UK), where the solution was engineered by ARUP.
Fast Installation
The large block format (2,400 × 1,200 × 520 mm) enables high installation rates. Blocks can be cut with a chainsaw or bucket to fit any site geometry: curved slopes, skewed connections at the deck end, transition zones with conventional fill.
Long-Term Durability
Polypropylene offers excellent resistance to water and most acids, alkalis and salt solutions. The material is impervious to rodents — unlike EPS-based products. Service life is compatible with the design life of bridge structures.
Installation of Nidaplast RA Lightweight Fill at Bridge Abutments
Installation follows the Nidaplast Technical Guide (PGMEO) and the LCPC guide:
- Excavation to the fill mass geometry, with secured working perimeter.
- Geotextile separator placed between the foundation soil and the blocks (tensile strength ≥ 20 kN/m, static CBR ≥ 3.5 kN). This prevents fines migration into the cellular structure.
- Blocks laid in courses to the layout plan, with cross-jointed coursing. Blocks butt-jointed under pavement (gap ≤ 2 cm, per LCPC guide).
- For total lightweight fill heights exceeding 6 m: insert a 0.30 m intermediate layer of conventional compacted fill to redistribute stresses.
- Conventional compacted fill above the lightweight fill mass: minimum 0.30 m for light construction traffic. The sub-base layer above is designed to the expected traffic loading (unbound granular layer + bituminous base course, per LCPC guidance).
- Closing geotextile layer on the top face before placing overlying fill.
The width-to-height ratio of the fill mass must be verified at design stage: a width greater than twice the height provides stability without specific calculation. Below this ratio, a dedicated structural note is required.
Frequently Asked Questions — Lightweight Fill for Bridge Abutments
What is the maximum depth of Nidaplast RA lightweight fill against a bridge abutment?
Installed heights can reach 10 m or more (reference: Leuge Viaduct, Brioude). The RA600 grade offers the highest long-term allowable bearing pressure (85 kPa) and supports up to 4.30 m of overlying fill (3 block layers). For total lightweight fill heights exceeding 6 m, an intermediate layer of conventional fill (≥ 0.30 m) is inserted.
Does Nidaplast RA lightweight fill perform in the presence of a water table or flooding?
Yes. The open cellular structure allows free water movement through the blocks without generating buoyancy forces. This makes it the preferred alternative to EPS geofoam in alluvial zones, valley bottoms and any site subject to seasonal flooding or rising groundwater. The material behaves as a hydraulically transparent fill.
Can Nidaplast RA be cut and shaped to fit complex abutment geometry?
Yes. Blocks are cut with a chainsaw or excavator bucket at the panel joints. RA500 panels (40 to 120 mm thick) allow fine adjustment at the perimeter. This flexibility is confirmed on all referenced abutment projects including the Leuge Viaduct and the Cotonou bridge.
How does Nidaplast RA compare to EPS geofoam for bridge abutment backfill?
Both materials are lightweight, but differ on two critical points for abutment applications. The wet unit weight of EPS reaches approximately 100 kg/m³ when water is absorbed (versus 35–45 kg/m³ for Nidaplast RA, unchanged in wet conditions). Nidaplast RA has a 95% void ratio — water flows freely through the open cells — compared to 5–9% for closed-cell EPS, which absorbs and retains water. In the presence of a fluctuating water table, Nidaplast RA maintains its mechanical properties and mass without generating buoyancy forces. It is also impervious to rodents.
