The nidagravel IG040 tiles are ideal for creating parking areas for camper-type vehicles.
The thick walls of the slab (3 to 5 mm) allow movement on it without damaging the walls.
Nidagravel tiles are frequently used to improve the comfort of motorhome parking spaces.
Discover an achievement in the south of France, in Mimizan. This seaside resort on the Silver Coast in the Landes has chosen this solution.
Nidagravel IG040 for parking on motorhome areas
To enhance the natural environment and take into account the risks of marine submersion and flooding, daIle IG040 was chosen to stabilize the gravel.The 60 places spread over 1740 m² of land, allow holidaymakers to take advantage of a suitable space. A real alternative to "all bitumen", cellular sheets allow motorhome operators to easily park their vehicle in stabilized places.
Nidagravel IG040 slabs offer a compressive strength of 310 tons per m2 when empty, and 400 to 800 tons per m2 when filled with pebbles (depending on the type of gravel chosen).
The structure of the slab promotes rainwater drainage while preventing the creation of ruts, holes and puddles. It also allows the installation of chairs and tables for travelers without the inconvenience of sinking into stones or mud in heavy rains. The parking area remains stable, passable and aesthetic.

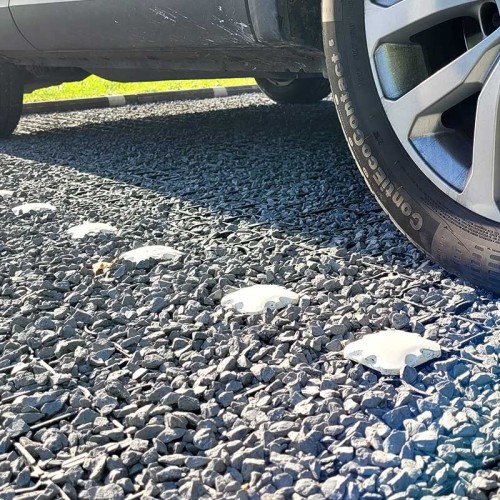

Gravel stabilization for motorhome parking lots
The implementation of gravel parking spaces is quick and facilitated by the use of honeycomb plates: material for motorhome parking.
The gravel stabilizers are delivered pre-assembled by 4 on the pallet. The slabs are placed on a prepared, draining and compacted form base. A geotextile can be laid between the laying bed and the slabs.
The slabs are then positioned and laid 5 cm from the border: thus leaving an expansion joint avoiding the lifting of the plates.
Once all the slabs have been installed, it is advisable to vibrate the whole on the subgrade in order to ensure good flatness.
The filling of the slabs with the gravel must be done up to the level. Then the whole thing will be compacted again to create a nice gravel camper van area.
